USW-WAN

Name: USW-WAN
Brand: Ubiquiti
SKU: USWWANCA
Price: 349.99 CAD
Availability: OutOfStock

$349.99

WAN Switch

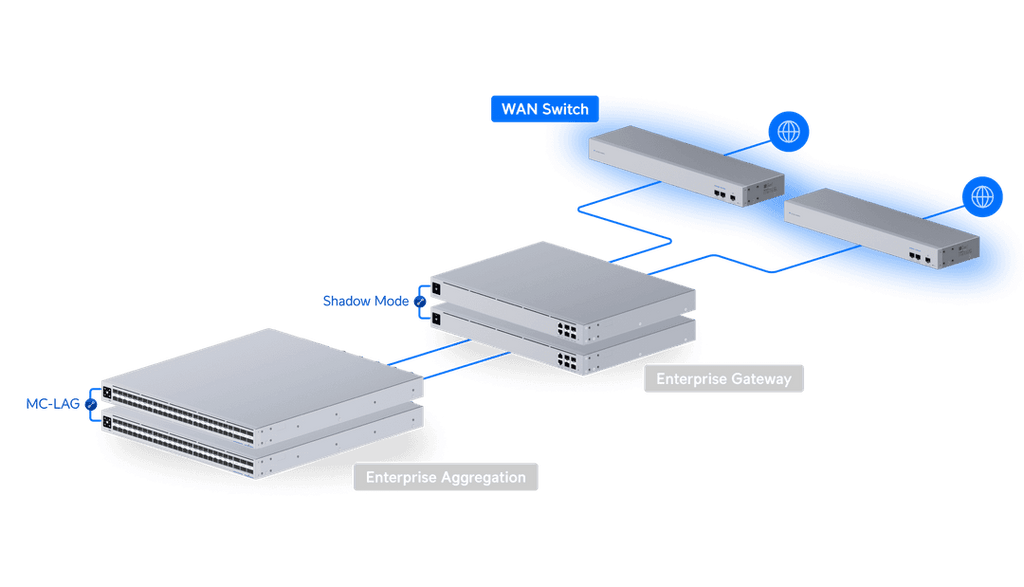

10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.

1 $349.99/ea

2-4 $349.07/ea

5-9 $348.14/ea

10-19 $347.22/ea

20+ $346.30/ea

WAN Switch

Fabricant	Ubiquiti
Modèle	USW-WAN
UPC	810084699928
Catégorie	Networking — Switches 4 to 10 Ports
Poids	7.1 lbs
Dimensions (boîte)	9.7" × 21.1" × 4.4" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

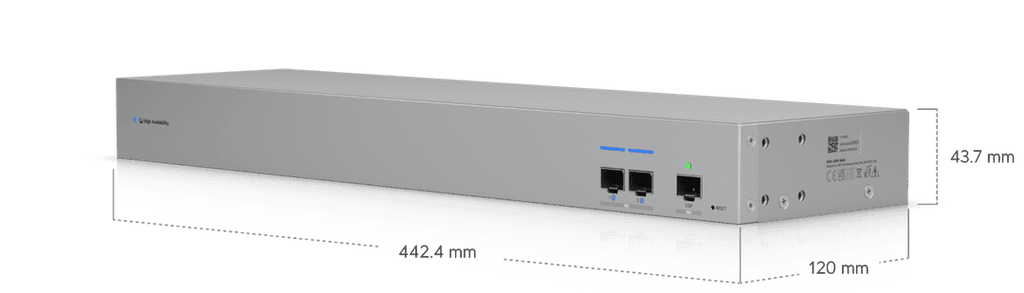

Dimensions	442.4 x 120 x 43.7 mm (17.4 x 4.72 x 1.7")
1 GbE RJ45	1 (1G/100M/10M)
10G SFP+	3 (10G/1G)
Redundancy	(2) AC inputs
Form Factor	Rack mount (1U)
Switching Capacity	20 Gbps
Total Non-Blocking Throughput	10 Gbps
Forwarding Rate	15 Mpps
Max. Power Consumption	13W
Power Method	(2) Universal input, 100–240V AC, 50/60 Hz
Power Input Method	AC input
Power Supply	(2) AC/DC, internal, 36W
Supported Voltage Range	100–240V AC
Management	Ethernet
Weight	Without mounting brackets: 2.2 kg (4.85 lb) With mounting brackets: 2.3 kg (5.1 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
ESD Protection	Air: ± 16kV, contact: ± 22kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Ethernet	✓
SFP+	✓
System	✓
Certifications	CE, FCC, IC, Anatel: 03715-25-08356
NDAA Compliant	✓
Application Requirements	Version 9.1.119 and later
UniFi Network	Version 9.1.119 and later

Specs

Dimensions	442.4 x 120 x 43.7 mm (17.4 x 4.72 x 1.7")
1 GbE RJ45	1 (1G/100M/10M)
10G SFP+	3 (10G/1G)
Redundancy	(2) AC inputs
Form Factor	Rack mount (1U)
Switching Capacity	20 Gbps
Total Non-Blocking Throughput	10 Gbps
Forwarding Rate	15 Mpps
Max. Power Consumption	13W
Power Method	(2) Universal input, 100–240V AC, 50/60 Hz
Power Input Method	AC input
Power Supply	(2) AC/DC, internal, 36W
Supported Voltage Range	100–240V AC
Management	Ethernet
Weight	Without mounting brackets: 2.2 kg (4.85 lb) With mounting brackets: 2.3 kg (5.1 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
ESD Protection	Air: ± 16kV, contact: ± 22kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Ethernet	✓
SFP+	✓
System	✓
Certifications	CE, FCC, IC, Anatel: 03715-25-08356
NDAA Compliant	✓
UniFi Network	Version 9.1.119 and later
