UX7

Name: UX7
Brand: Ubiquiti
SKU: UX7CA
Price: 265.99 CAD
Availability: InStock

$265.99 $282.99

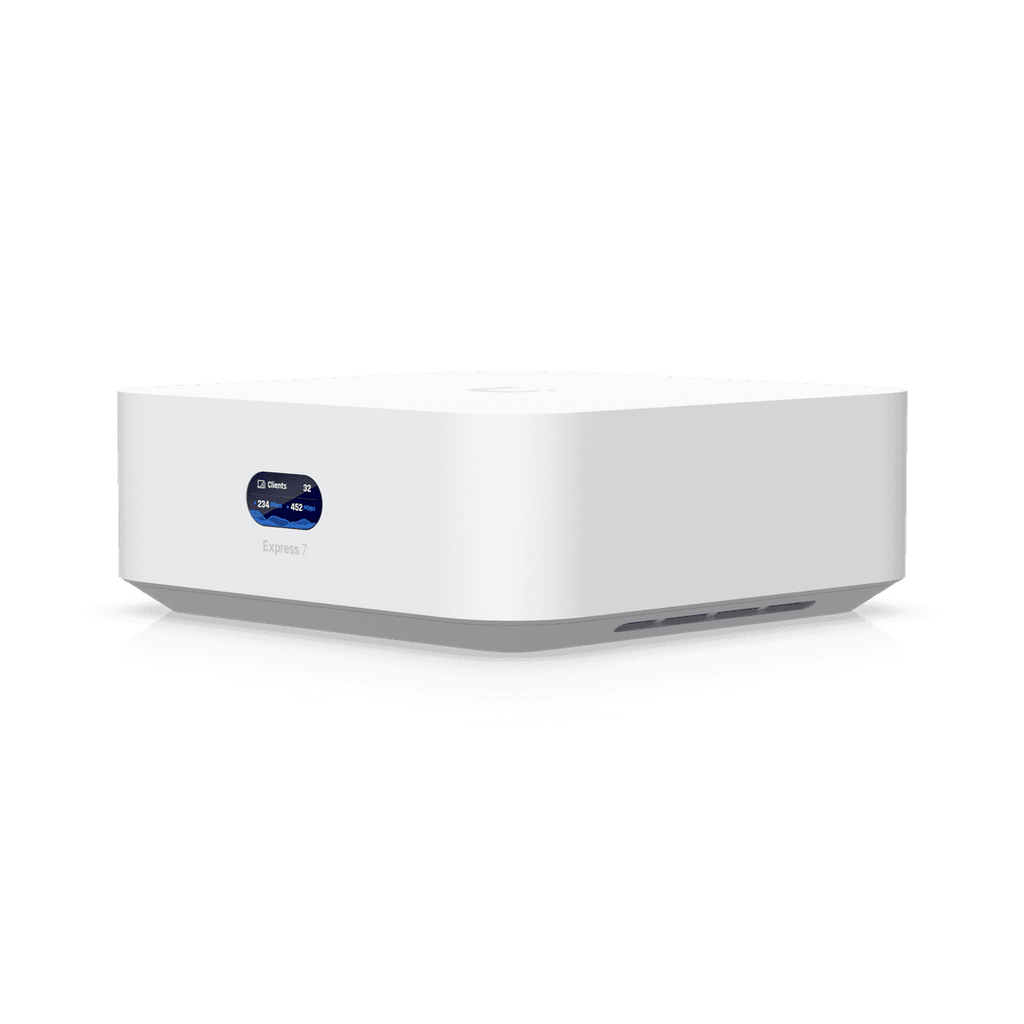

UniFi Express 7

Meshscalable, supercompact 10G Cloud Gateway with integrated WiFi 7.

1 $265.99/ea

2-4 $265.82/ea

5-9 $265.66/ea

10-19 $265.49/ea

20+ $265.32/ea

UniFi Express 7

Fabricant	Ubiquiti
Modèle	UX7
UPC	810084698983
Catégorie	Networking Wireless Dual Band — APs & Bridges
Poids	2.3 lbs
Dimensions (boîte)	7.2" × 8.1" × 3.7" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

Dimensions	117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'')
Network	✓
Managed UniFi Devices	30+
Simultaneous Users Connected	300+
Max. WAN Port Count	1
Default WAN Ports	(1) 10 GbE RJ45
2.5 GbE RJ45	1 (2.5G/1G/100M/10M)
10 GbE RJ45	1 (10G/5G/2.5G/1G/100M)
IDS/IPS Throughput	2.3 Gbps
Form Factor	Compact desktop
Coverage Area	160 m² (1,750 ft²)
Stateful Firewall	✓
Application-Aware Layer 7 Firewall	✓
DPI & Traffic Identification	✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)	✓
Content Filtering	✓
Intrusion Prevention (IPS/IDS)	✓
Ad Blocking	✓
IDS/IPS Signatures	20,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation	✓
License-Free SD-WAN	✓
Site Magic	✓
IPsec	✓
OpenVPN	✓
Identity Endpoint One-Click VPN	✓
Teleport Zero-Configuration VPN	✓
WireGuard	✓
L2TP	✓
Dynamic Routing	✓
OSPF	✓
Advanced QoS	✓
Multicast DNS (mDNS)	✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)	✓
Integrated RADIUS Server	✓
RADIUS over TLS (RadSec)	✓
Additional Internet Failover with UniFi LTE Backup	✓
Internet Quality and Outage Reporting	✓
Policy-based WAN and VPN Routing	✓
Customizable DHCP Server	✓
IPv6 ISP Support	✓
IGMP Proxy	✓
Virtual Network Override	✓
WiFi Standard	802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
6 GHz	24 dBm
5 GHz	26 dBm
2.4 GHz	23 dBm
Wireless Security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs	4 per Radio (Gateway Mode) 4 per Radio (AP Mode)
802.11be (WiFi 7)	7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
Max. Power Consumption	22W
Power Method	USB type C (5V DC/5A)
Power Supply	USB type C (5V DC/5A) (Adapter included)
Supported Voltage Range	100–240V AC
Heat Dissipation	75 BTU/hr
Processor	Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory	3 GB
Weight	422 g (14.9 oz)
Enclosure Material	Polycarbonate
LCM Display	0.96" status display
Management	Ethernet Bluetooth
Ethernet	✓
Button	(1) Factory reset
ESD/EMP Protection	Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature	-10 to 40° C (14 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 06656-25-08356
VLAN	802.1Q
Guest Traffic Isolation	✓
UniFi Network	Version 9.0.108 and later
