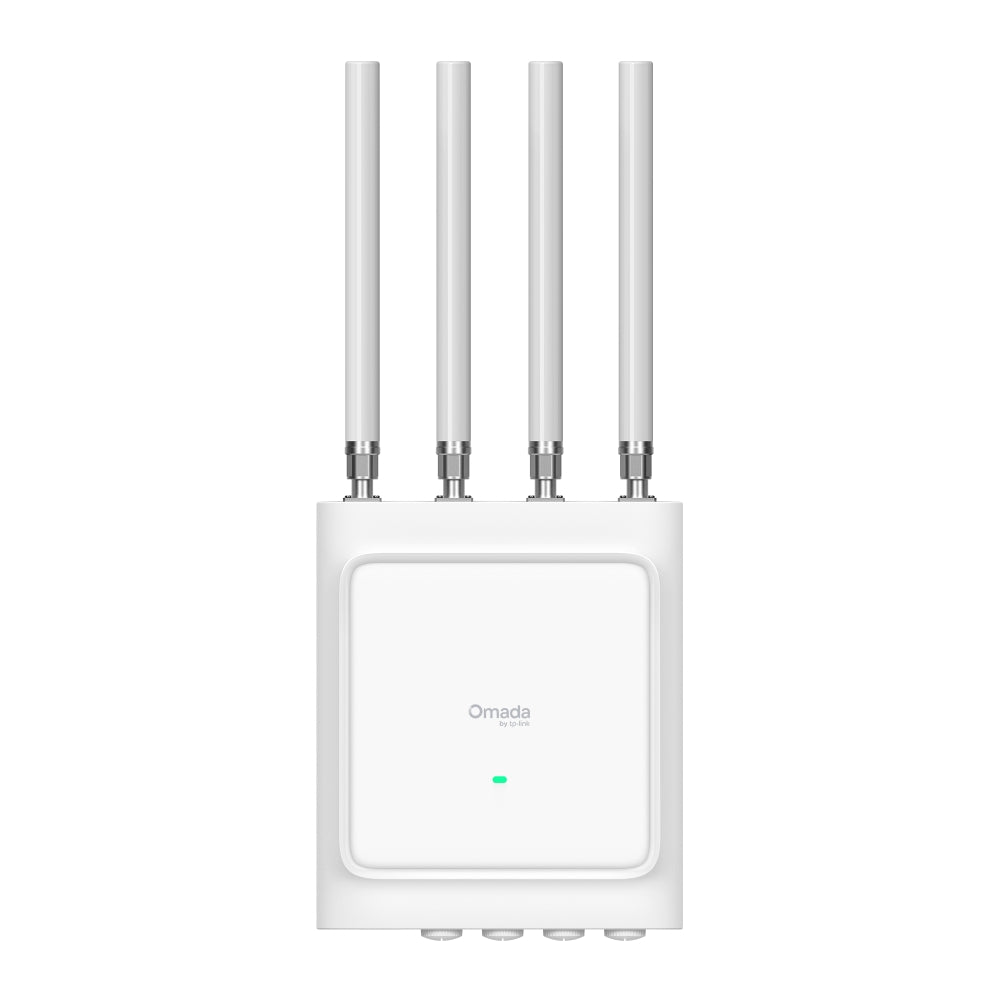

EAP668-Outdoor HD

$699.99

En rupture de stock

EAP668-Outdoor HD

Name: EAP668-Outdoor HD
Brand: TP-Link
SKU: EAP668OUTDOORCA
Price: 699.99 CAD
Availability: OutOfStock

$699.99

Wi-Fi double bande Omada AX3600

Point d'accès WiFi 6 bi-bande Omada AX3600 Intérieur/Extérieur. PORTS : 1 port RJ45 2,5 G + 1 port RJ45 Gigabit (prise en charge de la sortie PoE) + 1 port SFP+ 1G/10G. VITESSE : 1148 Mbps à 2,4 GHz + 2402 Mbps à 5 GHz. CARACTÉRISTIQUES : PoE 802.3at/bt, résistance aux intempéries IP68, 4 antennes bi-bandes de type N, Bluetooth, MU-MIMO, itinérance transparente, Band Steering, Beamforming, équilibrage de charge, Airtime Fairness, gestion centralisée par le contrôleur Omada SDN, application Omada.

Wi-Fi double bande Omada AX3600

Connectivité haute densité : Prend en charge jusqu'à 1 024 appareils.* Idéal pour les environnements extérieurs : Boîtier résistant aux intempéries classé IP68, protection contre la foudre de 6 kV et une plage de fonctionnement fiable de -40 °C à +70 °C. Antennes détachables à gain élevé : 4 antennes omnidirectionnelles externes de type N, 6 dBi double bande (antennes incluses). Vitesses Wi-Fi 6 ultra-rapides de 3,6 Gbit/s : 1148 Mbit/s sur 2,4 GHz et 2402 Mbit/s sur 5 GHz.† Plusieurs ports pour des solutions réseau flexibles : 1 emplacement SFP+ 10G, 1 port PoE-In 2,5G et 1 port PoE-Out Gigabit. Alimentation PoE+/PoE++ et sortie PoE+ : Prend en charge l'entrée PoE 802.3at/bt et la sortie PoE 802.3at.‡ Fonctionnalités avancées : Omada Mesh, itinérance transparente, Bluetooth et gestion centralisée dans le cloud.§

Fabricant	TP-Link
Modèle	EAP668-Outdoor HD
UPC	840460601146
Catégorie	Networking — Routers
Poids	12.3 lbs
Dimensions (boîte)	13.7" × 15.9" × 4.8" (L×P×H)

Specifications

General

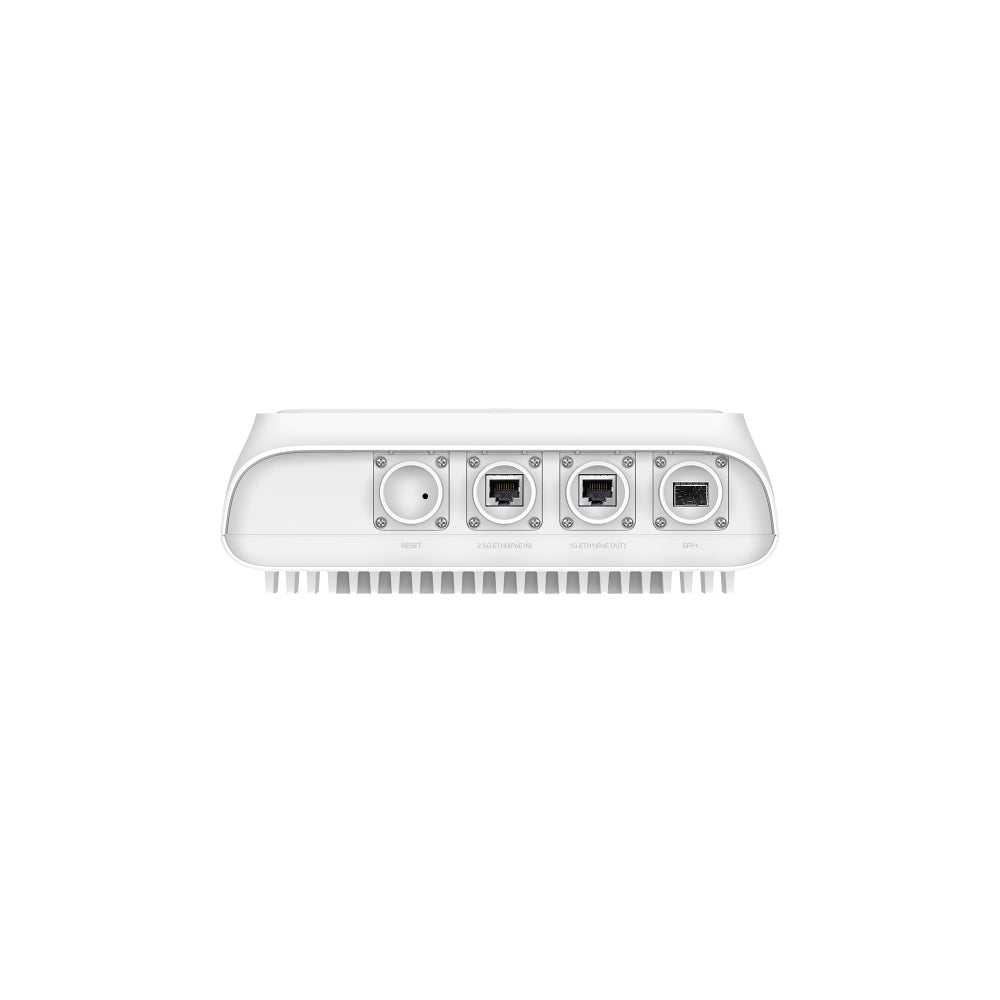

Interface	1× 2.5G Ethernet Port + 1× Gigabit Ethernet Port + 1× 10G SFP+
Button	Reset
Power Supply	802.3at/bt PoE
Max. Power Consumption	802.3bt: • EU: 20.2W (bt type3: af PSE out; bt type4: at PSE out)• US: 25.4W (bt type3: af PSE out; bt type4: at PSE out); 802.3at: • EU: 20.2W (PSE disabled)• US: 25.4W (PSE disabled)Note: PoE out power not included. The PoE-out feature requires 802.3bt PoE input.

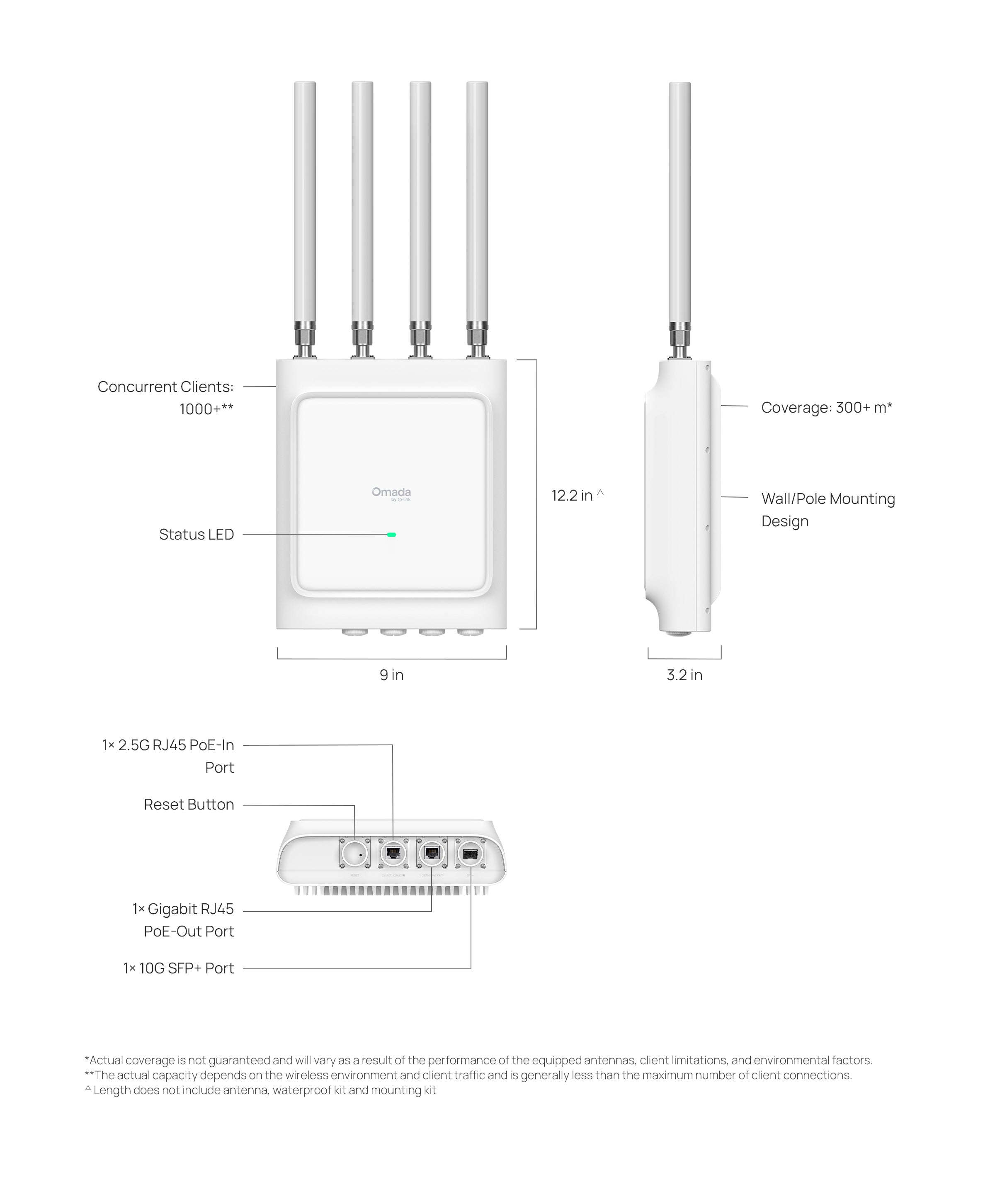

Dimensions ( W x D x H )	9.5 × 3.2 × 12.3 in (240 × 80 × 312 mm) (excluding antennas, waterproofing kit, and mounting kit)
Antenna	4× External Dual-Band Omni Antennas• 2.4 GHz: 6.0 dBi• 5 GHz: 6.0 dBi
Bluetooth	Yes
Weatherproof Enclosure	IP68

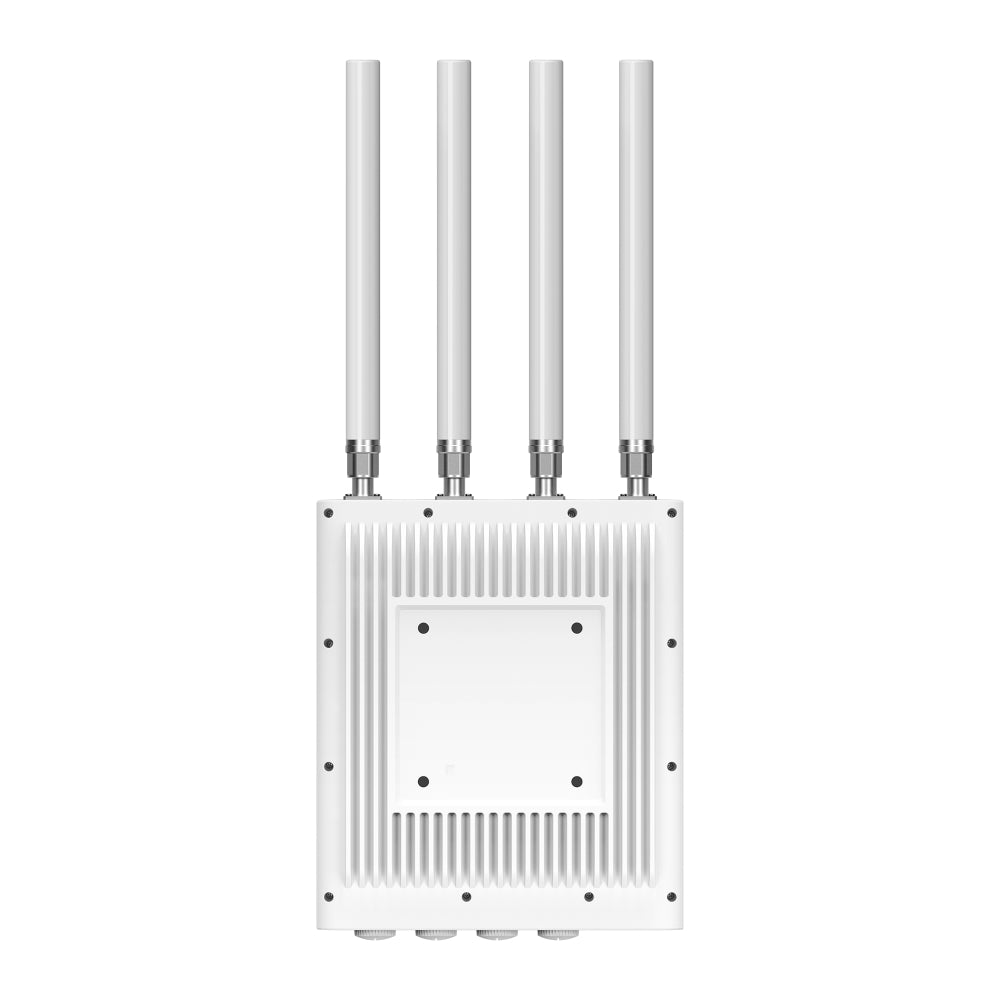

Mounting	Wall/pole mouting (kits included)，supporting horizontal ±45° adjustment• Optional bracket accessory APM-110: Supports vertical ±90°, horizontal ±45° adjustment• Optional bracket accessory APM-100: Supports vertical ±45° , horizontal ±45° adjustment(Note: Optional bracket accessories need to be purchased separately)
Concurrent Clients	1,000+*
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax
Frequency	5 GHz, and 2.4 GHz
Signal Rate	• 5 GHz: Up to 2402 Mbps• 2.4 GHz: Up to 1148 Mbps
Wireless Functions	• 1024-QAM• Mesh§ • Seamless Roaming(802.11k/v/r)§ • Enable/Disable Wireless Radio• Enable/Disable SSID Broadcast• Guest Network• Automatic Channel Assignment (Adjust transmit Power on dBm)• Transmit Power Control• Load Balance• Band Steering• Beamforming• Airtime Fairness• Multiple SSIDs:16 (8 for each band)• MU-MIMO (4 × 4 MU-MIMO DL/UL)• UL/DL OFDMA• Wireless Statistics• Wireless Schedule• Reboot Schedule• RADIUS Accounting• MAC Authentication• Static IP/Dynamic IP
Wireless Security	• VLAN• Access Control• Rogue AP Detection• Captive Portal Authentication• Maximum number of MAC Filter: 4,000• Wireless Isolation between Clients• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: < 20 dBm (2.4 GHz, EIRP); < 23dBm (5 GHz, band1&band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP);• FCC: < 29 dBm (2.4 GHz); < 28 dBm (5 GHz, Band1 & Band4 ) ; < 23 dBm (5 GHz, Band2 & Band3)
Omada App	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
Centralized Management	• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller
Cloud Access	Yes. Require the use of an Omada controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
SSH	Yes
Web-based Management	Yes
Certification	CE, FCC, RoHS

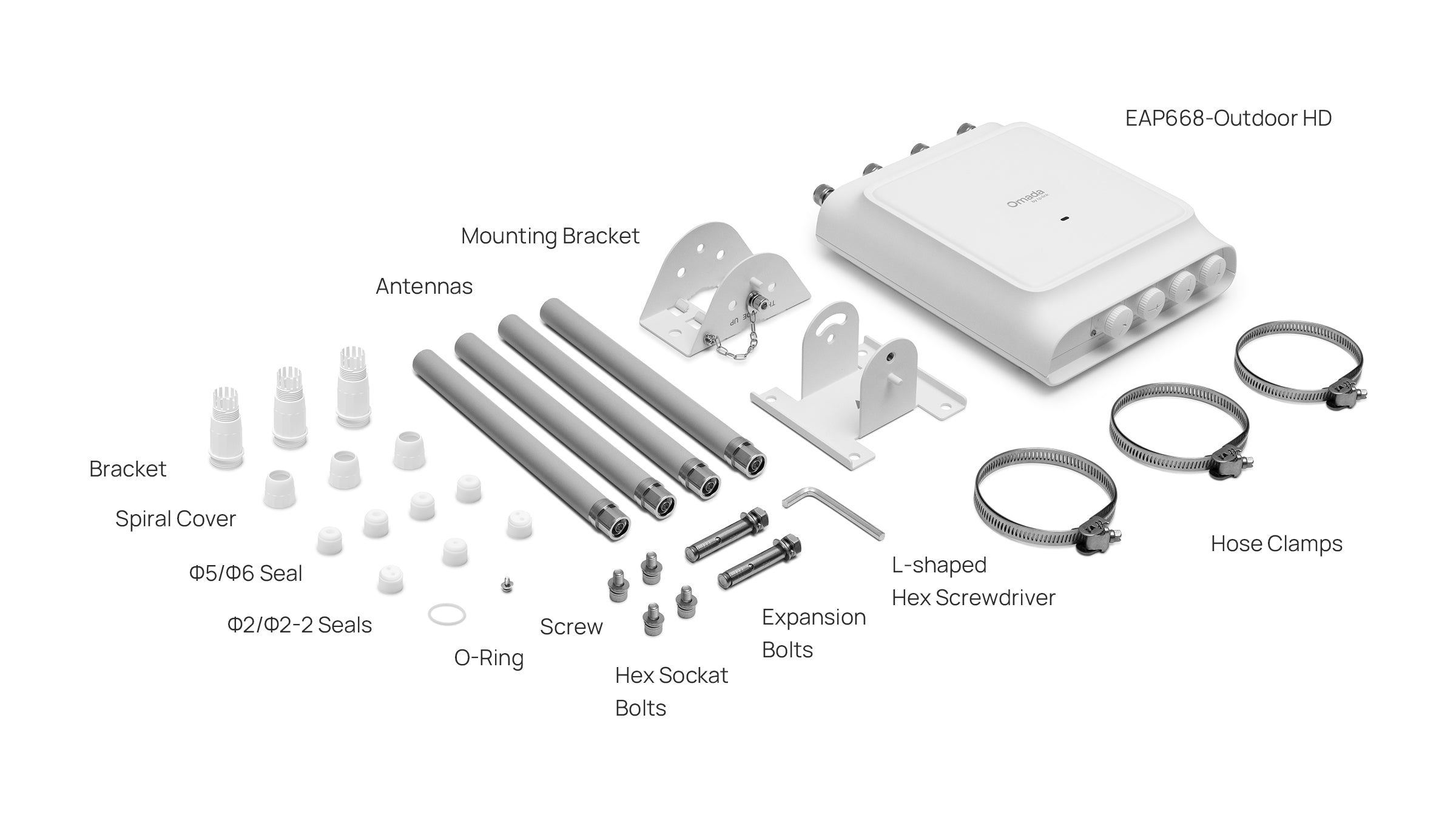

Package Content	• EAP668-Outdoor HD• 4× External Dual-Band Omni Antennas• Installation Guide• Mounting Kit• Waterproof Kit
Environment	• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing

TechnicalIn The BoxFAQ

General

Interface	1× 2.5G Ethernet Port + 1× Gigabit Ethernet Port + 1× 10G SFP+
Button	Reset
Power Supply	802.3at/bt PoE
Max. Power Consumption	802.3bt: • EU: 20.2W (bt type3: af PSE out; bt type4: at PSE out)• US: 25.4W (bt type3: af PSE out; bt type4: at PSE out); 802.3at: • EU: 20.2W (PSE disabled)• US: 25.4W (PSE disabled)Note: PoE out power not included. The PoE-out feature requires 802.3bt PoE input.
Dimensions ( W x D x H )	9.5 × 3.2 × 12.3 in (240 × 80 × 312 mm) (excluding antennas, waterproofing kit, and mounting kit)
Antenna	4× External Dual-Band Omni Antennas• 2.4 GHz: 6.0 dBi• 5 GHz: 6.0 dBi
Bluetooth	Yes
Weatherproof Enclosure	IP68
Mounting	Wall/pole mouting (kits included)，supporting horizontal ±45° adjustment• Optional bracket accessory APM-110: Supports vertical ±90°, horizontal ±45° adjustment• Optional bracket accessory APM-100: Supports vertical ±45° , horizontal ±45° adjustment(Note: Optional bracket accessories need to be purchased separately)
Concurrent Clients	1,000+*
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax
Frequency	5 GHz, and 2.4 GHz
Signal Rate	• 5 GHz: Up to 2402 Mbps• 2.4 GHz: Up to 1148 Mbps
Wireless Functions	• 1024-QAM• Mesh§ • Seamless Roaming(802.11k/v/r)§ • Enable/Disable Wireless Radio• Enable/Disable SSID Broadcast• Guest Network• Automatic Channel Assignment (Adjust transmit Power on dBm)• Transmit Power Control• Load Balance• Band Steering• Beamforming• Airtime Fairness• Multiple SSIDs:16 (8 for each band)• MU-MIMO (4 × 4 MU-MIMO DL/UL)• UL/DL OFDMA• Wireless Statistics• Wireless Schedule• Reboot Schedule• RADIUS Accounting• MAC Authentication• Static IP/Dynamic IP
Wireless Security	• VLAN• Access Control• Rogue AP Detection• Captive Portal Authentication• Maximum number of MAC Filter: 4,000• Wireless Isolation between Clients• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: < 20 dBm (2.4 GHz, EIRP); < 23dBm (5 GHz, band1&band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP);• FCC: < 29 dBm (2.4 GHz); < 28 dBm (5 GHz, Band1 & Band4 ) ; < 23 dBm (5 GHz, Band2 & Band3)
Omada App	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
Centralized Management	• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller
Cloud Access	Yes. Require the use of an Omada controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
SSH	Yes
Web-based Management	Yes
Certification	CE, FCC, RoHS
Package Content	• EAP668-Outdoor HD• 4× External Dual-Band Omni Antennas• Installation Guide• Mounting Kit• Waterproof Kit
Environment	• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing
