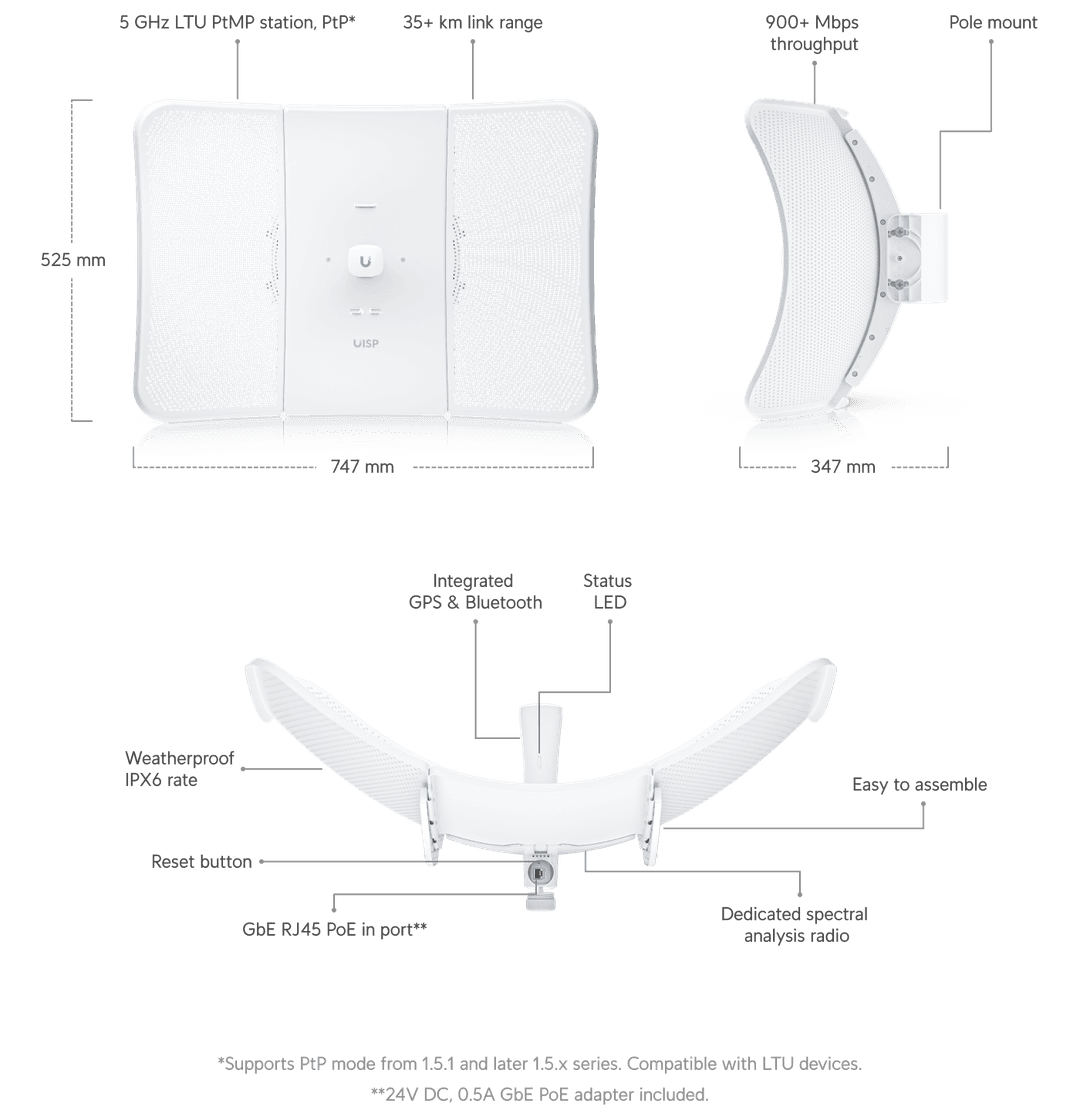

| Dimensions |
747 x 525 x 347 mm (29.4 x 20.7 x 13.7") |
| Weight |
3.2 kg (7.1 lb) |
| Enclosure material |
Aluminum alloy, UV-stabilized polycarbonate |
| Mount material |
UV-stabilized polycarbonate |
| Mount |
Integrated pole mount (included)Pole compatibility: Ø35 to 60 mm (Ø1.4 to 2.4") |
| Wind loading |
1100 N at 200 km/h (247.29 lbf at 125 mph) |
| Weatherproofing |
IPX6 |
| Networking interface |
(1) GbE RJ45 port |
| Power method |
Passive PoE 2-pair (4, 5+; 7, 8-) |
| Power supply |
24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range |
22—27V DC |
| Max. power consumption |
9W |
| RF connections |
Internal |
| LEDs |
Power/Ethernet |
| Button |
Factory reset |
| Ambient operating temperature |
-40 to 55° C (-40 to 131° F) |
| Ambient operating humidity |
5 to 95% non-condensing |
| Certifications |
FCC, IC, CE |
| NDAA Compliant |
Yes |
| Modes |
PtMP CPE, PtP**1.5.1 and later 1.5.x series firmware. |
| Services |
SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities |
airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
| Auto distance adjustment |
Yes |
| Auto power adjustment |
Yes |
| Network |
Bridge/Router* mode*Router mode is available in PtMP CPE mode only. |
| Security |
Yes |
| Statical reporting |
Yes |
| Management interface |
Bluetooth management for easy setup over UISP AppWEB UI |
| Minimum software requirements |
Any modern web browseriOS™ or Android™ based smartphone |
| Maximum throughput |
900+ Mbps**FW version 2.3.0 and later. |
| Encryption |
WPA2-PSK (AES) |
| Uplink/downlink ratio |
25/75, 33/67, 50/50 |
| Operating frequency* |
5.15 to 5.95 GHz*Depends on regulatory region. |
| Max. conducted TX power |
25 dBm |
| Channel bandwidth |
10/20/30/40/50/60/80/100 MHz**FW version 2.3.0 and later. |
| Antenna gain |
29 dBi |
| Isolation |
20 dB |
| Beamwidth |
HPOL: 3 dB: 5.5°, 6 dB: 7.5°VPOL: 3 dB: 5.5°, 6 dB: 7.5°Elevation: 3 dB: 5.5°, 6 dB: 7.5° |
| Electrical downtilt |
0° |
