OC400

OC400

$499.99
Passer aux informations sur le produit
OC400
  • OC400
  • OC400 - Image 2
  • OC400 - Image 3
  • OC400 - Image 4
  • OC400 - Image 5
  • OC400 - Image 6
  • OC400 - Image 7
  • OC400 - Image 8
  • OC400 - Image 9
  • OC400 - Image 10
  • OC400 - Image 11
  • OC400 - Image 12
  • OC400 - Image 13
  • OC400 - Image 14
  • OC400 - Image 15
  • OC400 - Image 16
  • OC400 - Image 17
OC400
En rupture de stock

OC400

$499.99

Contrôleur matériel Omada

Contrôleur matériel OmadaPORT : 2 ports SFP+ 10 G, 4 ports Ethernet 10/100/1000 Mbps, 2 ports USB 3.0, 1 port console RJ45CARACTÉRISTIQUES : Accès Cloud, gestion centralisée pour jusqu'à 1000 bornes d'accès Omada, 200 commutateurs Omada et 100 routeurs Omada, gestion multisite, application Omada, boîtier métallique, montable en rack, double alimentation redondante

Contrôleur matériel Omada

Gestion centralisée du cloud 2 logements SFP+ 10GE, 4 ports Gigabit RJ45 2 ports USB 3.0 pour la sauvegarde Alimentations redondantes doubles fixes Le contrôleur matériel Omada (OC400) pour la plateforme Omada Software Defined Networking (SDN) prend en charge la gestion centralisée de jusqu'à 1 000 points d'accès Omada, 200 commutateurs Omada et 100 routeurs Omada.* Profitez d'un service cloud sans frais de licence avec l'utilisation de l'OC400. Interface de gestion unifiée Contrôleur matériel Omada OC400 1. Association au serveur Accès cloud au contrôleur Omada Interface de gestion Omada
Fabricant TP-Link
Modèle OC400
UPC 810142820028
Catégorie Networking — Monitoring & Diagnostics
Poids 6.65 lbs
Dimensions (boîte) 10.9" × 20.8" × 3.2" (L×P×H)

Specifications

General

Processor Quad-Core CPU
Memory 4 MB Nor Flash; 32 GB eMMC; 8 GB DDR4

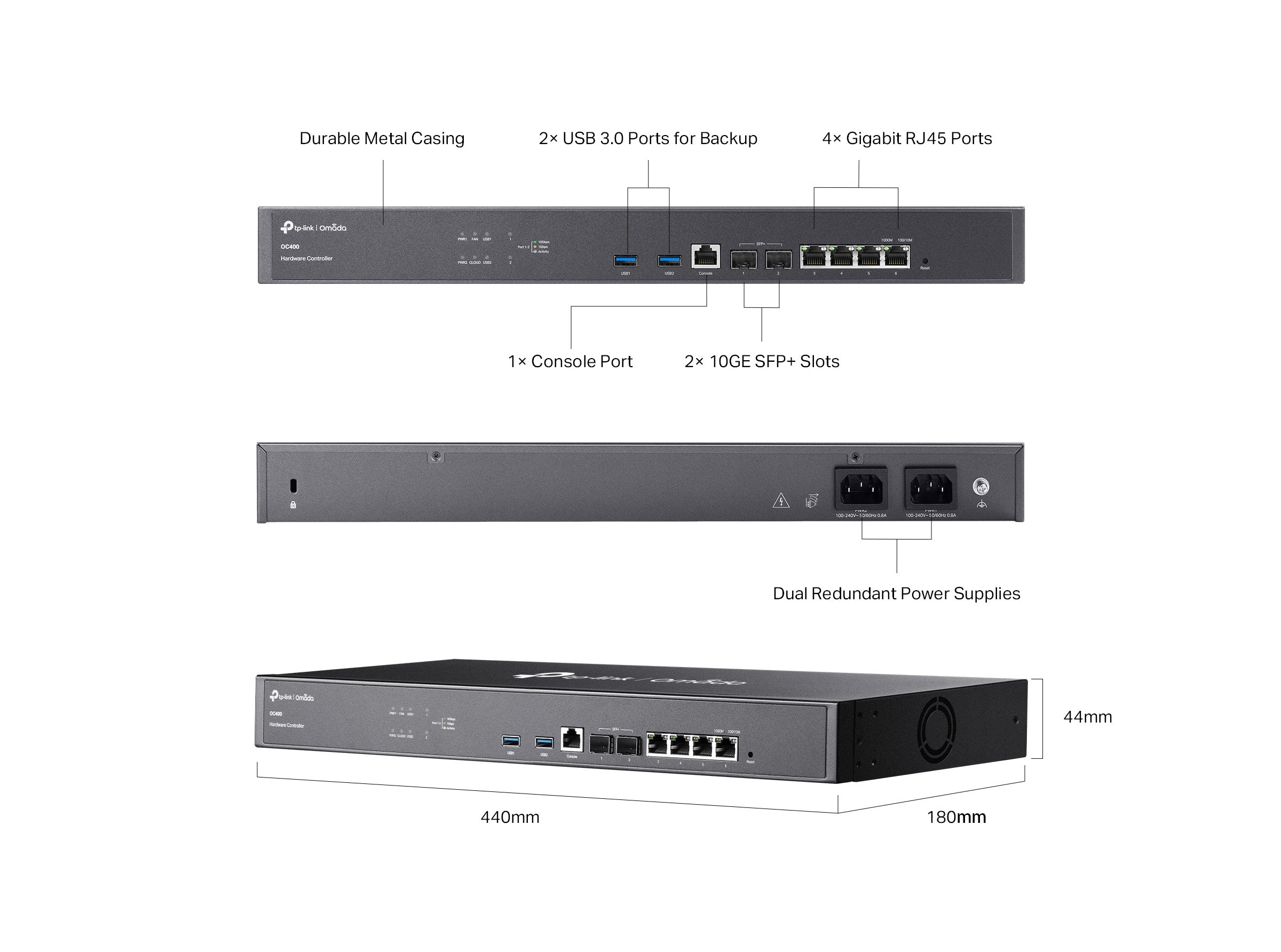

Interface • 2× 10G SFP+ Ports• 4× GE RJ45 Ports• 2× USB 3.0 Ports• 1× GE Console Port
Fan Quantity 1
Button • 1× Reset
Power Supply 100-240 V ~ 50/60 Hz AC
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Omada App Yes
Centralized Management • Up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers*• Up to 30,000 clients*Refer to www.tp-link.com/en/business-networking/all-omada/ to find all the models supported by OC400
Cloud Access Yes
Multi-site Management Yes
Management Features • Multi-tenant Management (Role/Site/Device Privileges)• Migration (Site Migration/Controller Migration)• Account Management• Backup & Restore• Auto Backup• Customized UI Interface• Automatic Device Discovery • Batch Configuration• Online upgrade• Reboot Schedule• PoE Schedule• WLAN Schedule• Batch Firmware Upgrading • DDNS• SNMP• SSH
Redundant Power Supply 2× Internal Fixed Power Supplies
Monitoring • Custom Dashboard• Statistics (Performance/Switch Stats)• Network topology • Network Map • Devices List • Clients List • Insights • Logs
Certification CE, FCC, RoHS

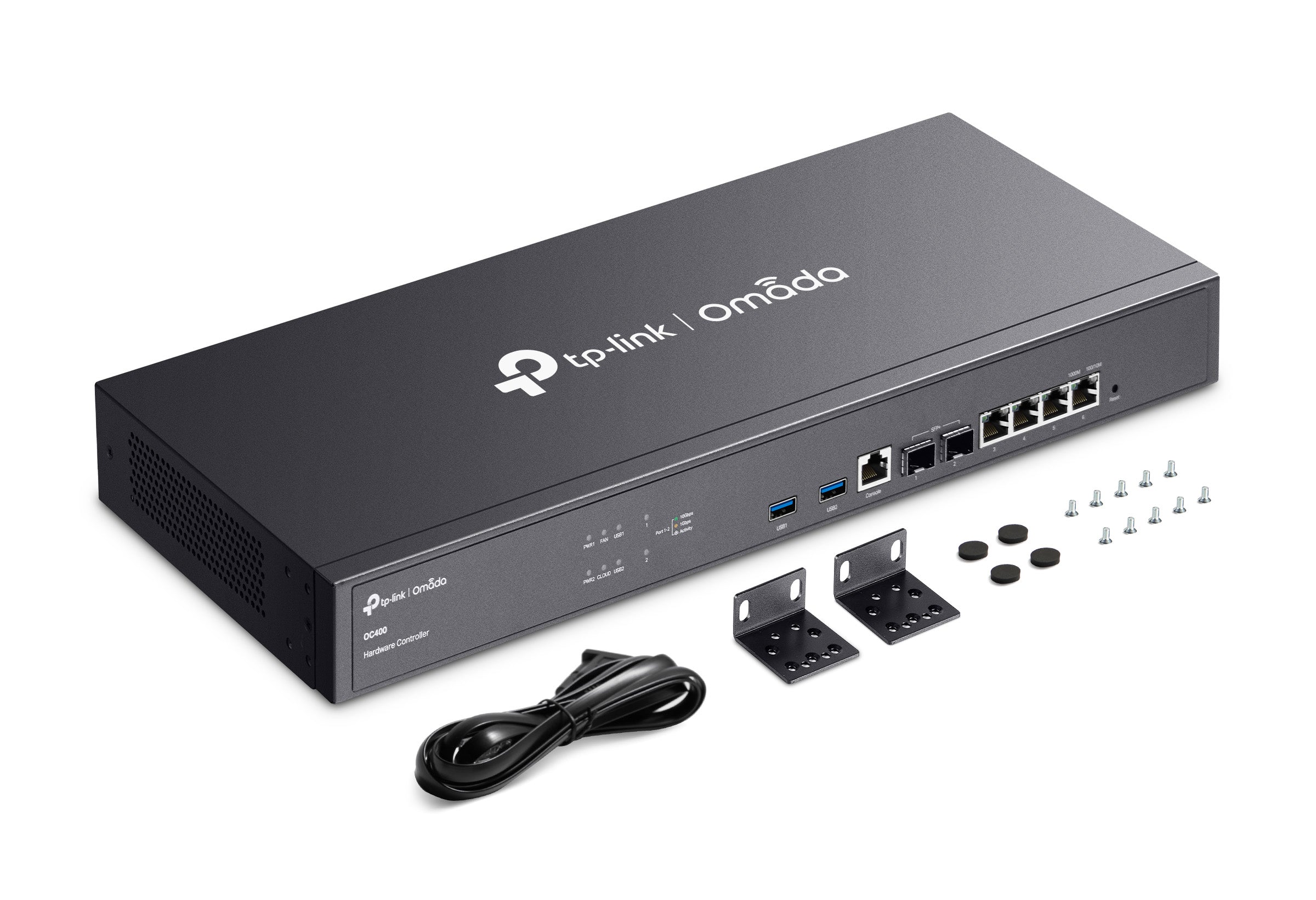

Package Content • Omada Hardware Controller OC400• Quick Installation Guide • Ethernet Cable• Power Cord• Rackmount Kit
System Requirements Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
ProductProductProductProductProductProduct
General
Processor Quad-Core CPU
Memory 4 MB Nor Flash; 32 GB eMMC; 8 GB DDR4
Interface • 2× 10G SFP+ Ports• 4× GE RJ45 Ports• 2× USB 3.0 Ports• 1× GE Console Port
Fan Quantity 1
Button • 1× Reset
Power Supply 100-240 V ~ 50/60 Hz AC
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Omada App Yes
Centralized Management • Up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers*• Up to 30,000 clients*Refer to www.tp-link.com/en/business-networking/all-omada/ to find all the models supported by OC400
Cloud Access Yes
Multi-site Management Yes
Management Features • Multi-tenant Management (Role/Site/Device Privileges)• Migration (Site Migration/Controller Migration)• Account Management• Backup & Restore• Auto Backup• Customized UI Interface• Automatic Device Discovery • Batch Configuration• Online upgrade• Reboot Schedule• PoE Schedule• WLAN Schedule• Batch Firmware Upgrading • DDNS• SNMP• SSH
Redundant Power Supply 2× Internal Fixed Power Supplies
Monitoring • Custom Dashboard• Statistics (Performance/Switch Stats)• Network topology • Network Map • Devices List • Clients List • Insights • Logs
Certification CE, FCC, RoHS
Package Content • Omada Hardware Controller OC400• Quick Installation Guide • Ethernet Cable• Power Cord• Rackmount Kit
System Requirements Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Contents not available.
