Lecteur de carte NFC compact de deuxième génération et dispositif de demande de sortie prenant en charge le déverrouillage de porte par balayage de la main. Alimentation PoEUL 294 Classe 2 à puissance limitéeUL 609501/623681 LPS/PS2
Recevez un courriel quand UA-G2-NOIR sera de retour en stock.
Aucun spam. Un seul courriel quand le produit est disponible.
Parfait! Vous recevrez un courriel dès que le produit sera de retour.
Remises sur volume
1
$196.99/ea
2-4
$196.18/ea
5-9
$195.37/ea
10-19
$193.75/ea
20+
$192.13/ea
Votre prix :
G2 Reader Black
Fabricant
Ubiquiti
Modèle
UA-G2-BLACK
UPC
810084692356
Catégorie
Networking Wireless Dual Band — APs & Bridges
Poids
0.95 lbs
Dimensions (boîte)
6.4" × 3.7" × 2.7" (L×P×H)
Overview

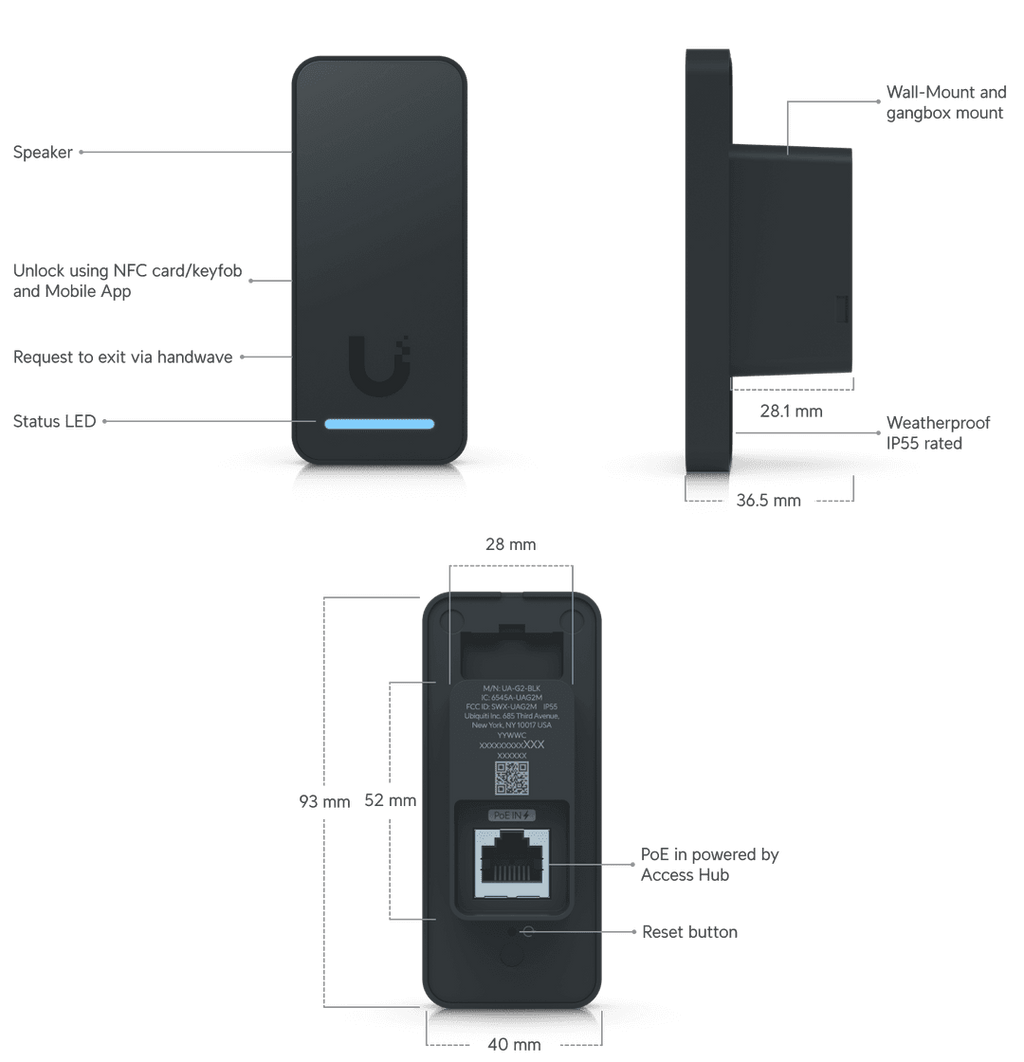

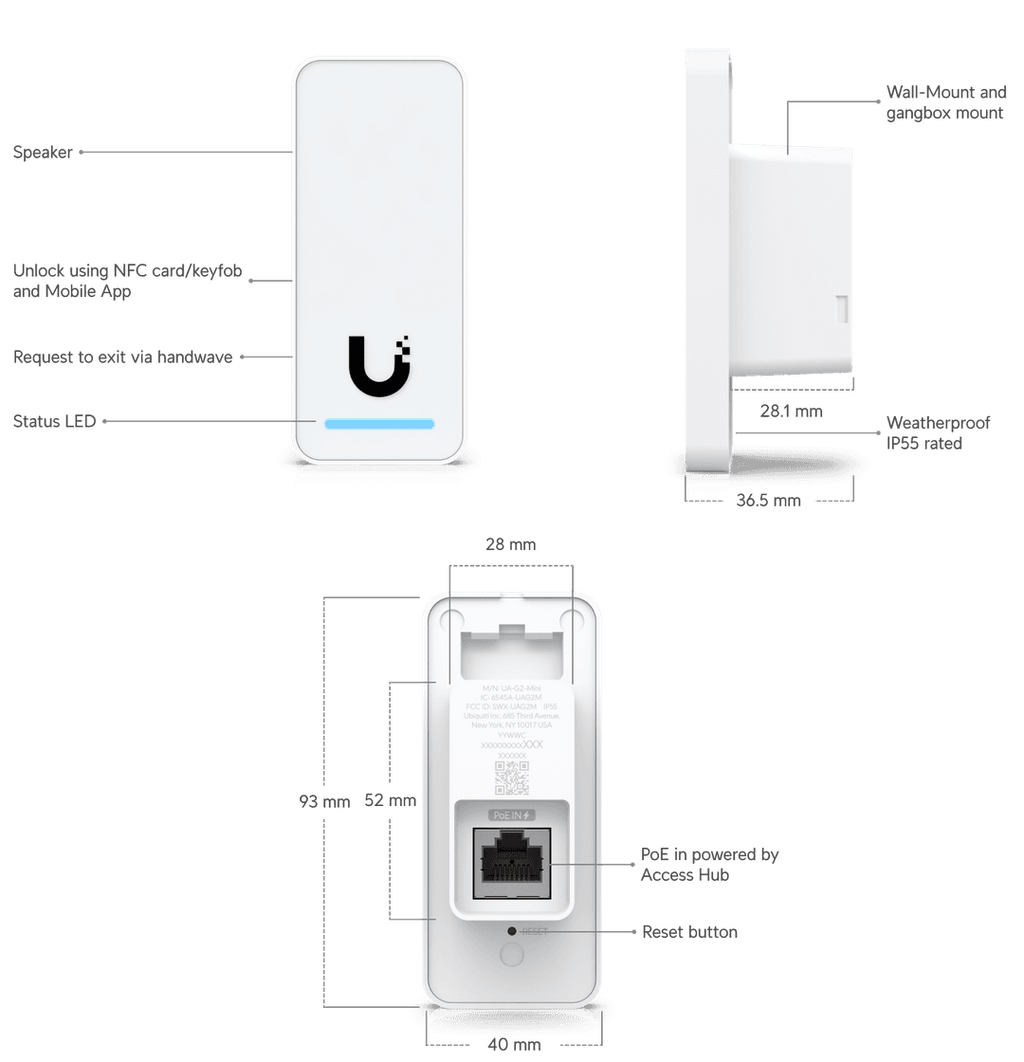

Dimensions
93 x 40 x 36.5 mm
(3.7 x 1.6 x 1.4")
NFC Card & Keyfob Access
✓
Mobile Unlock
✓
Handwave Request to Exit
✓
NDAA Compliant
✓
UL 294 Level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weatherproofing
IP55
Weight
82 g (2.9 oz)
Enclosure Material
Polycarbonate, glass
Mount Material
Aluminum alloy
Mounting
In-wall, gang box (Included)
Junction box (Optional)
Indoor and Outdoor Use
Yes
Networking Interface
(1) 10/100 MbE RJ45 port
Connectivity
BLE 4.1
NFC
Power Method
PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
5W
Supported Voltage Range
48V DC
ESD/EMP Protection
Air: ± 15kV, contact: ± 8kV
Sensors
Proximity sensor
Speaker
✓
LEDs
R/G/B/W Learn More
Button
(1) Factory reset
NFC Frequency
13.56 MHz
NFC Read Range
< 30 mm (1.18'')
NFC Technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G2/UA-G2-Black, V02
Ambient Operating Temperature
-30 to 45° C
(-22 to 113° F)
Ambient Operating Humidity
5 to 90% noncondensing
Management Application
Access
Software Information
The software version can be checked at https://unifi.ui.com
