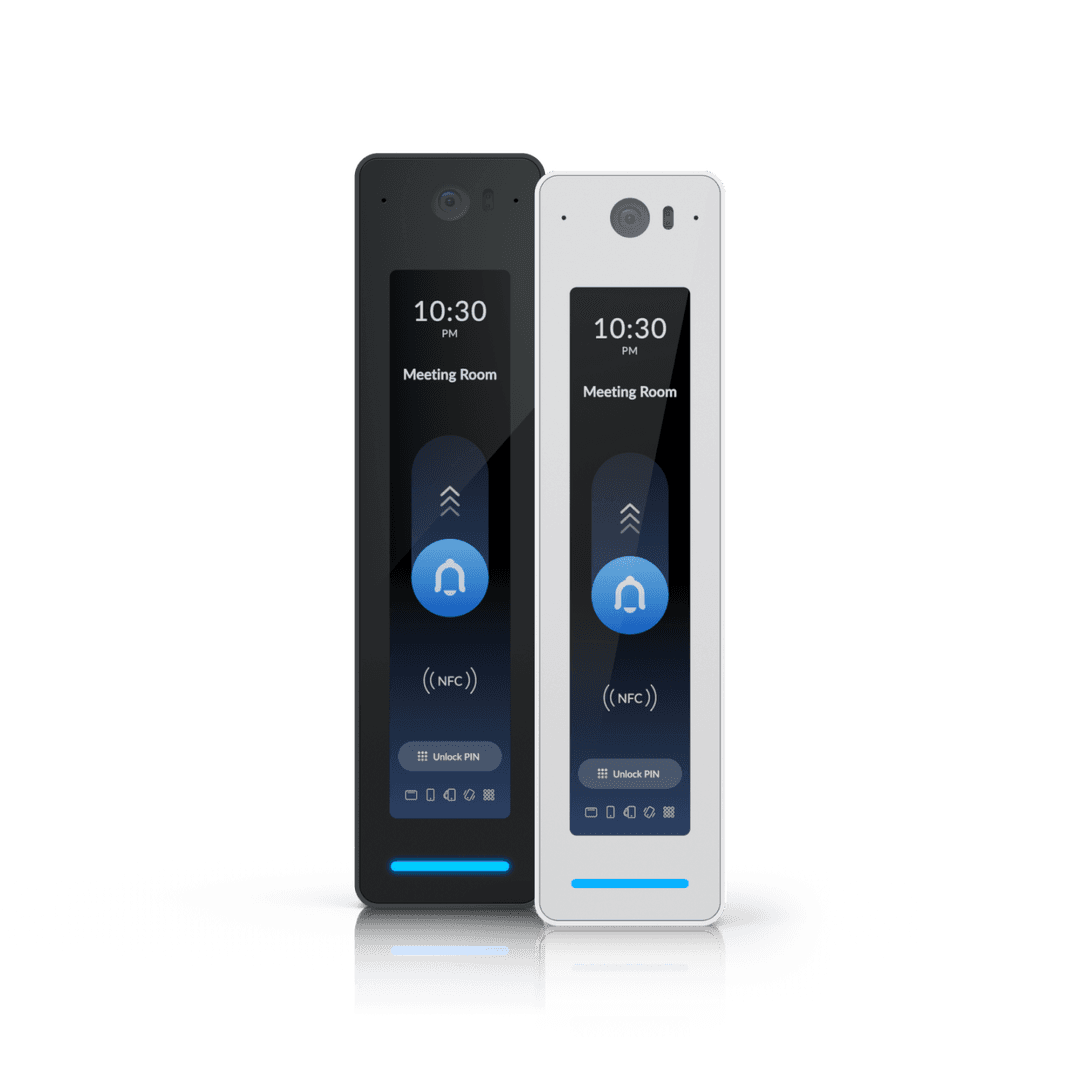

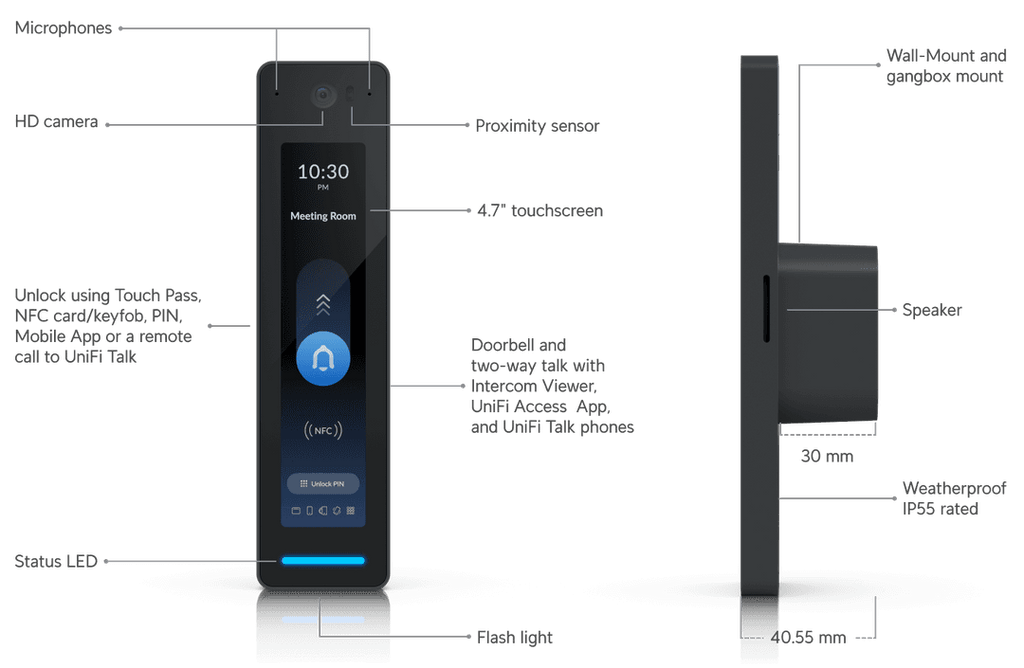

Interphone et lecteur NFC d'intérieur/d'extérieur de troisième génération compatible Apple Touch Pass.
Recevez un courriel quand UA-G3-Pro-B sera de retour en stock.
Aucun spam. Un seul courriel quand le produit est disponible.
Parfait! Vous recevrez un courriel dès que le produit sera de retour.
Remises sur volume
1
$560.99/ea
2-4
$558.67/ea
5-9
$556.35/ea
10-19
$551.72/ea
20+
$547.08/ea
Votre prix :
G3 Reader Pro
Fabricant
Ubiquiti
Modèle
UA-G3-Pro-B
UPC
810084697580
Catégorie
Networking Wireless Dual Band — APs & Bridges
Poids
1.25 lbs
Dimensions (boîte)
3.75" × 8.25" × 2.6" (L×P×H)

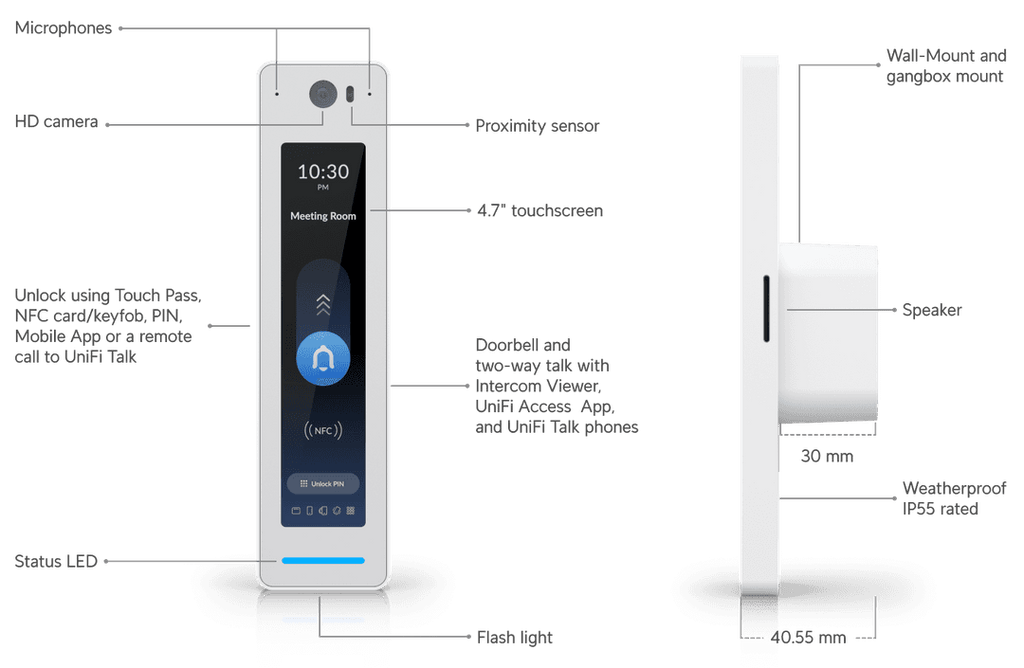

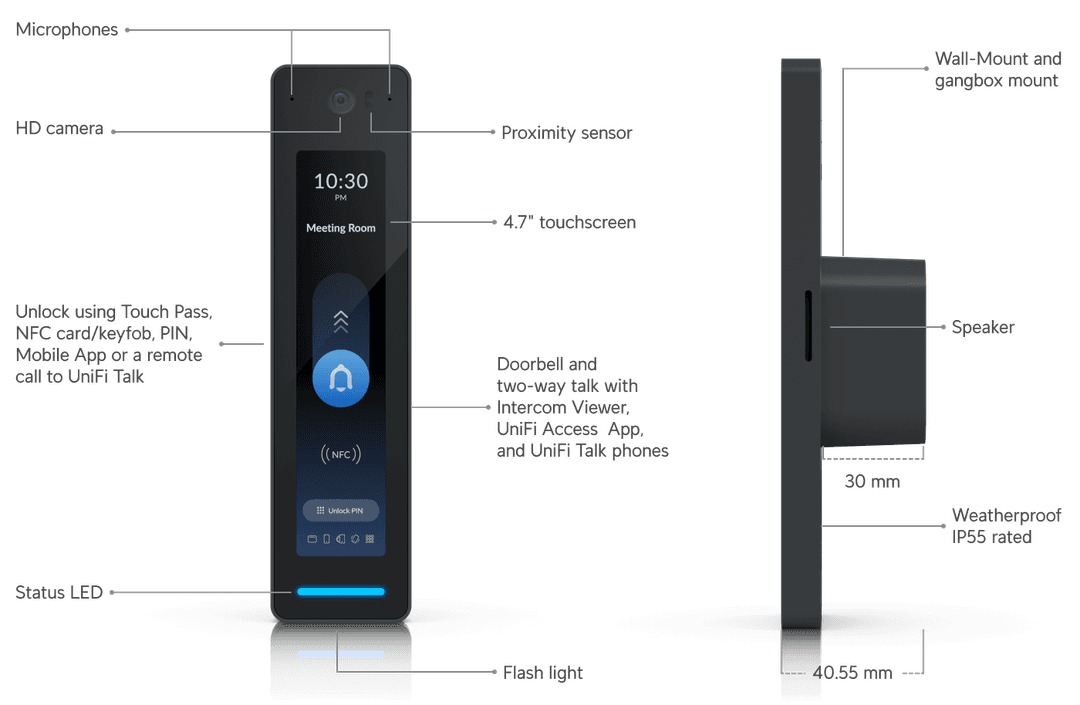

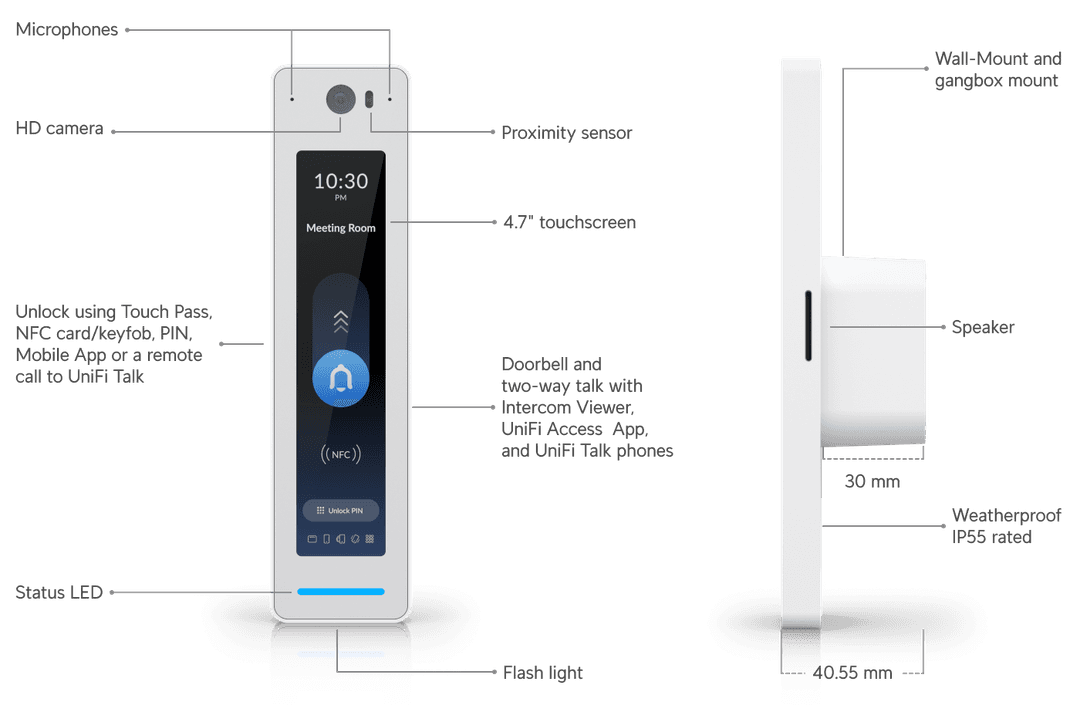

Overview

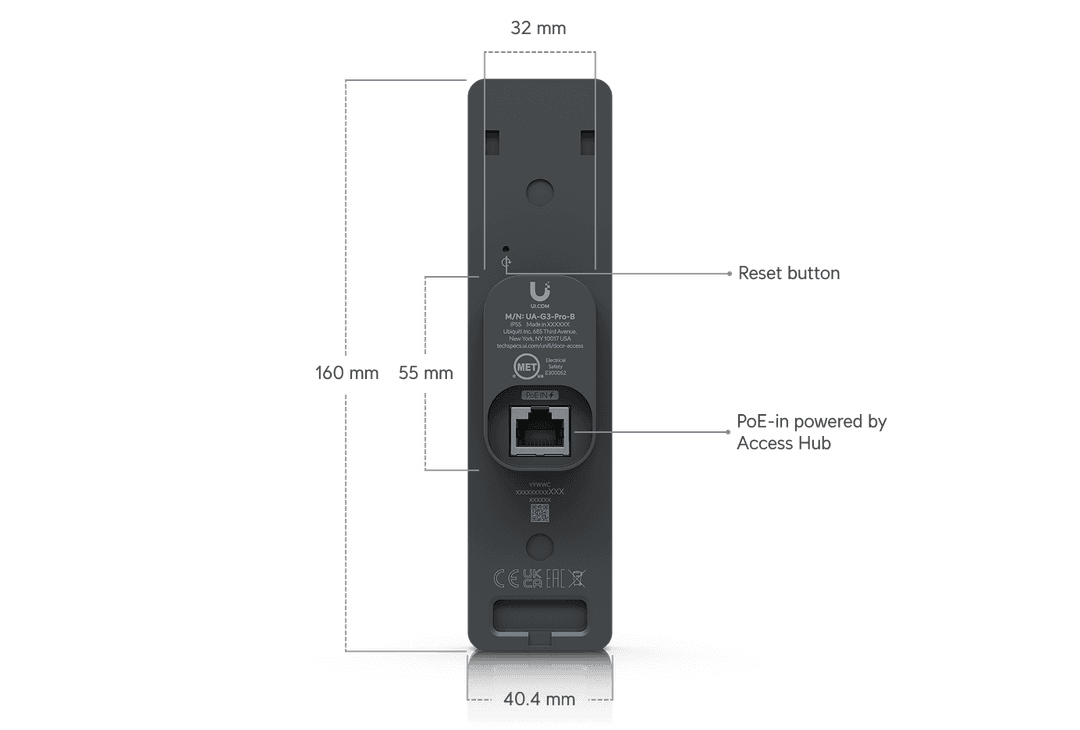

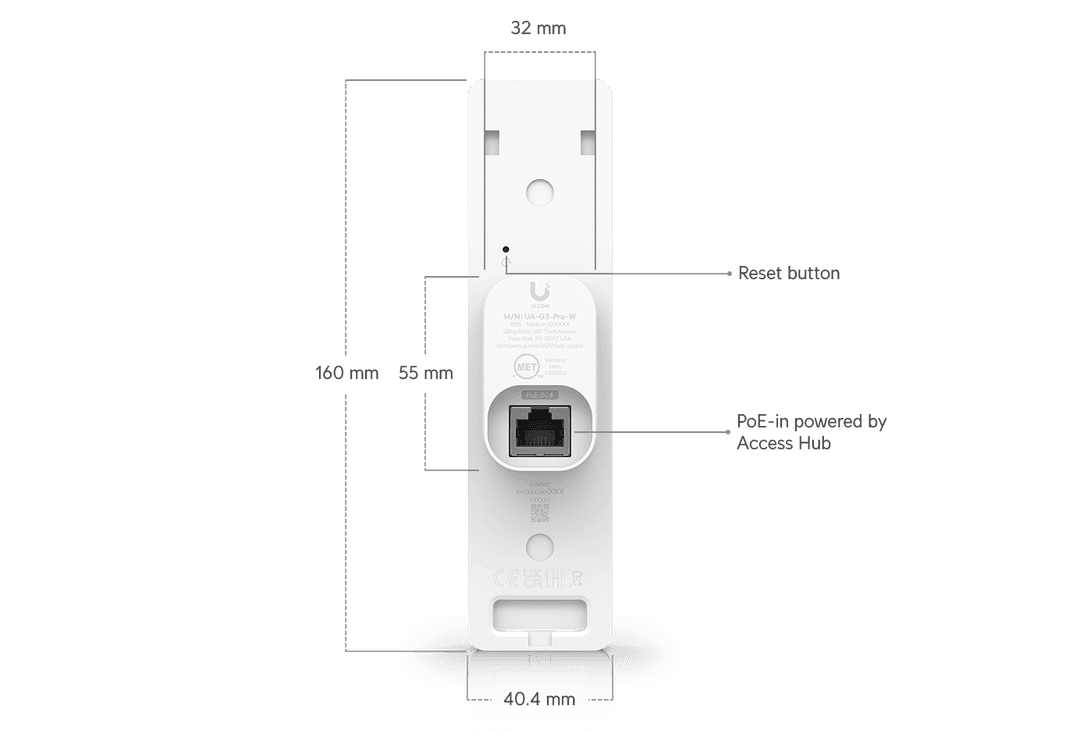

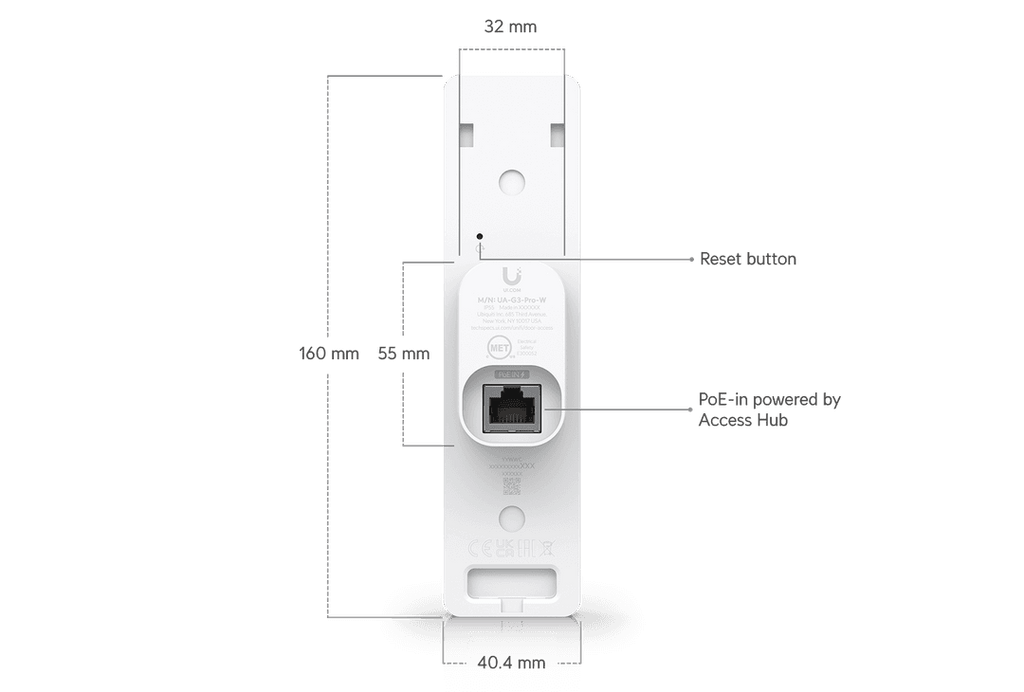

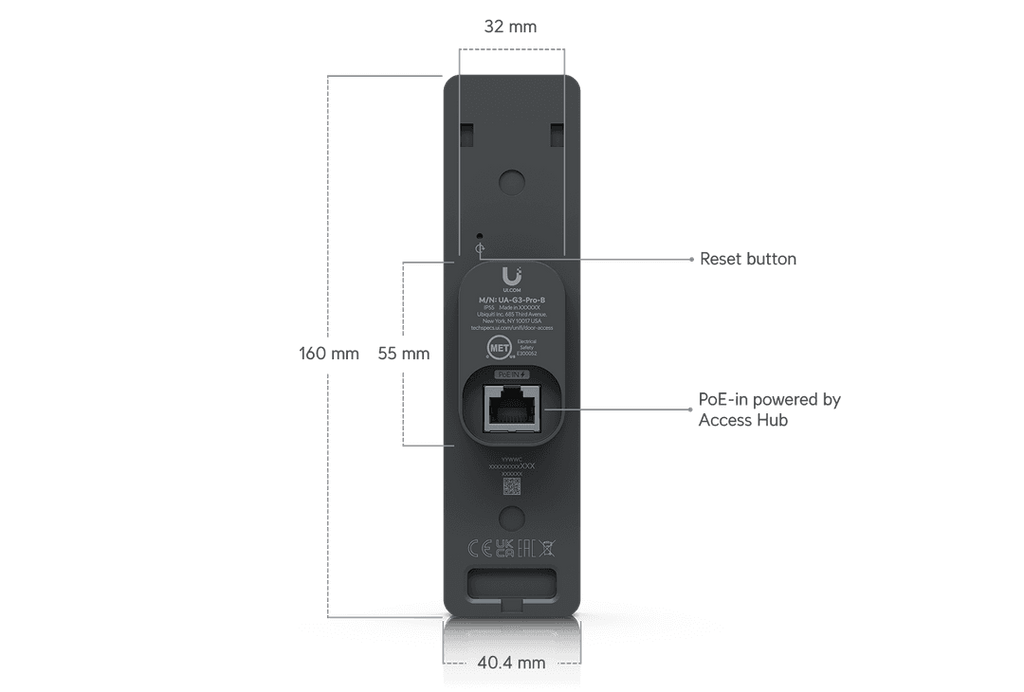

Dimensions
160 x 40.4 x 40.55 mm
(6.3 x 1.59 x 1.6")
Integrated Camera
✓
NFC Card & Keyfob Access
✓
PIN Access
✓
Apple/Google Wallet
✓
Mobile Unlock
✓
Face Unlock
✓
Two-Way Intercom & Doorbell Access
✓
NDAA Compliant
✓
UL 294 Level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weatherproofing
IP55
Weight
136 g (4.8 oz)
Enclosure Material
Polycarbonate, glass
Mount Material
Aluminum alloy
Mounting
Wall, gang-box mount (Included)
Angle mount, junction box (Optional)
Indoor and Outdoor Use
Yes
Networking Interface
(1) GbE RJ45 port
Connectivity
BLE 4.2
NFC
Power Method
PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
6W
Supported Voltage Range
48V DC
ESD/EMP Protection
Air: ± 15kV, contact: ± 8kV
Max. Frame Rate
30 FPS
Resolution
1280 x 286 px
Field of View
H: 98.6°, V: 125.7°, D: 157.8°
Sensors
Proximity sensor
Size
120 mm (4.7") diagonal
Screen Technology
Capacitive touch
Luminance
480 nits (Typical)
Screen Orientation
Portrait
Microphone
✓
Speaker
✓
LEDs
R/G/B/W/Amber Learn More
Button
(1) Factory reset
NFC Frequency
13.56 MHz
NFC Read Range
< 30 mm (1.18'')
NFC Technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G3-Pro-W/UA-G3-Pro-B, V01
Ambient Operating Temperature
Device: -30 to 45° C (-22 to 113° F)
Display: -10 to 45° C (14 to 113° F)
Ambient Operating Humidity
5 to 90% noncondensing
Management Application
Access
Software Information
The software version can be checked at https://unifi.ui.com
