UISP-FIBER-OLT-XGS

Name: UISP-FIBER-OLT-XGS
Brand: Ubiquiti
SKU: UISPFIBEROLTXCA
Price: 3666.99 CAD
Availability: OutOfStock

$3,666.99

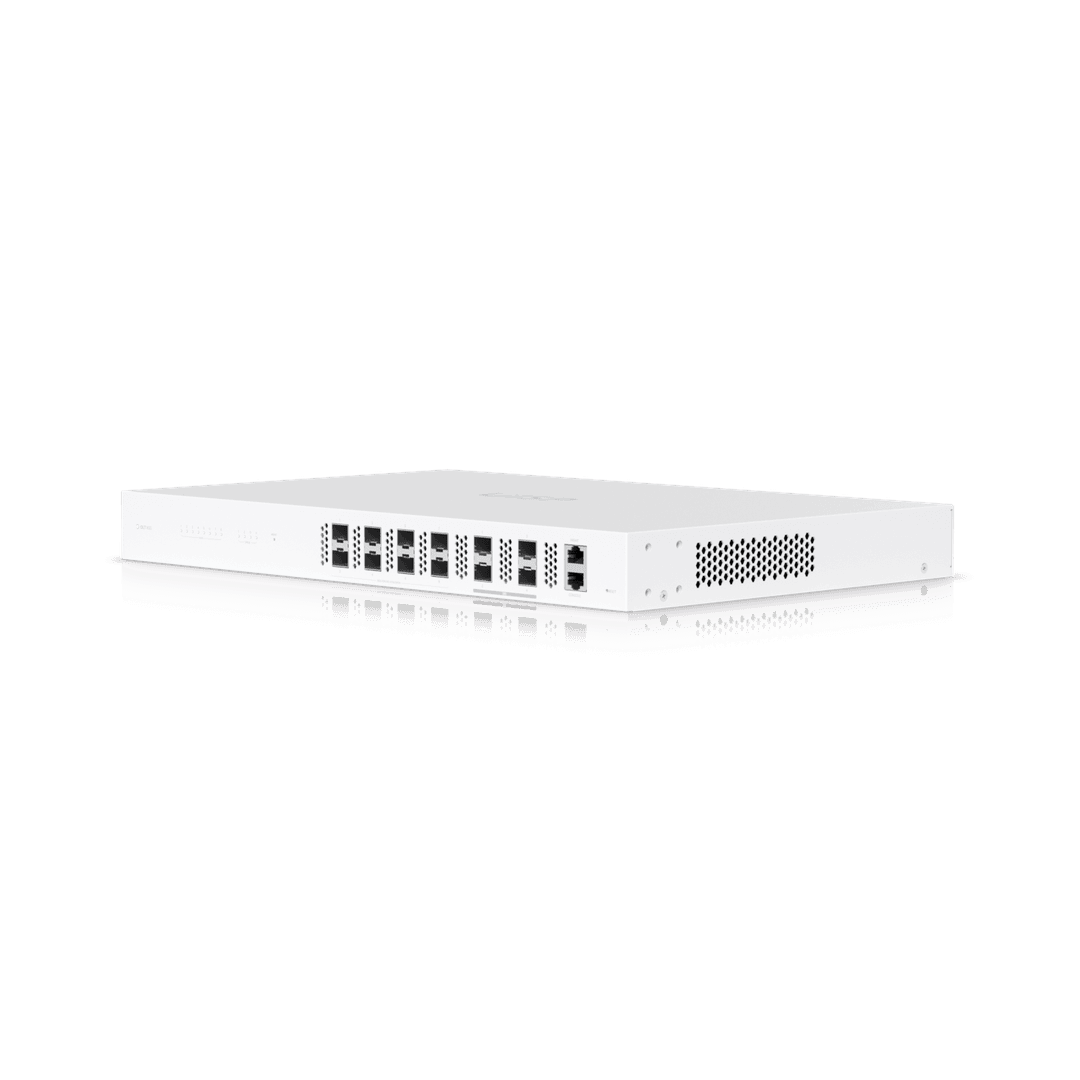

UISP Fiber OLT XGS

Un terminal de ligne optique à huit ports qui peut fournir des vitesses de liaison montante/descendante de 10 Gbit/s à plus de 2 000 abonnés. Capacité bidirectionnelle XGSPON 10 Gbit/s, capacité de 2048 clients, 8 ports, 4 ports de liaison montante SFP28 25 G, montage en rack 1U, prise en charge de la redondance des modules d'alimentation CA/CC

1 $3,666.99/ea

2-4 $3,652.09/ea

5-9 $3,637.19/ea

10-19 $3,607.38/ea

20+ $3,577.58/ea

UISP Fiber OLT XGS

Fabricant	Ubiquiti
Modèle	UISP-FIBER-OLT-XGS
UPC	810084691175
Catégorie	Networking — Accessories
Poids	14.9 lbs
Dimensions (boîte)	20.4" × 17.4" × 4.6" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

General

Dimensions	442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7")
Weight	5.29 kg (11.7 lb)
Enclosure material	SGCC steel

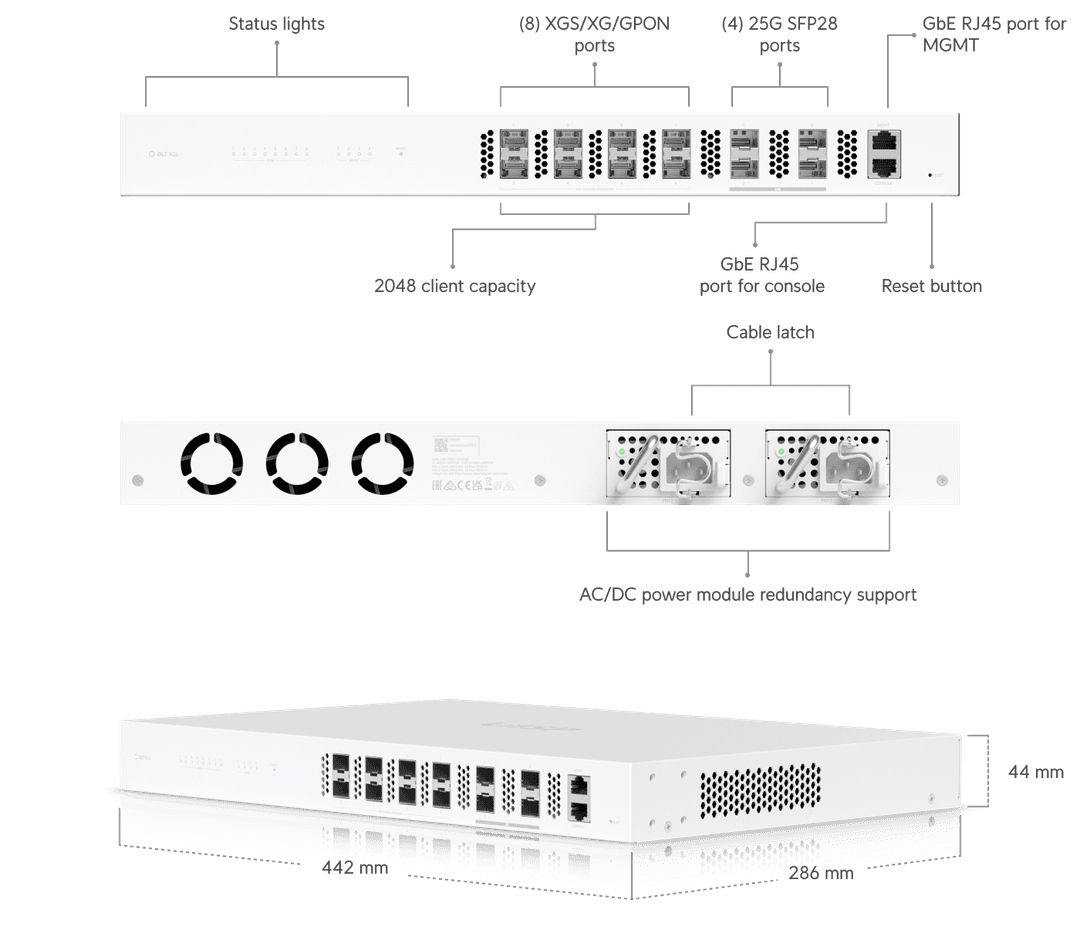

Networking interface	(8) XGS/XG/GPON ports(4) 1/10/25G SFP28 ports**The four SFP28 ports don't support mixed speed at 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. The SFP28 ports only support mixed speed when all ports are at 1 Gbps or 10 Gbps.
Management interface	Ethernet out-of-bandEthernet in-bandRJ45 serial console portBluetooth
Memory	512 MB DDR3
Onboard flash storage	64 MB NOR + 512 MB NAND
Power method	(1) Universal AC input, 100-240V AC, 50/60 Hz
Power supply	(2) Hotswap AC/DC PSU
Supported voltage range	100–240V AC
Max. power consumption	70W
Button	(1) Factory reset
Ambient operating temperature	-10 to 45° C (14 to 113° F)
Ambient operating humidity	10 to 95% non-condensing
Certifications	CE, FCC, IC
System	Slow blinking white: system is bootingFast blinking white: reset to defaultBlinking white/blue: system is upgradingSlow blinking blue: system is connecting to UISPFast blinking blue: locate systemSteady white: system is readySteady blue: system is ready and connected to UISP
MGMT port	(1) White, steady on after link is up
PON ports	(8) Steady white: PON link
SFP28 ports	(4) White, steady on after link is up
NDAA Compliant	Yes
