Wave-AP-Micro
$706.99
Passer aux informations sur le produit
En rupture de stock
Wave-AP-Micro
$706.99
WaveAPMicro
Point d'accès PtMP 60 GHz à large couverture alimenté par la technologie Wave
Recevez un courriel quand
Wave-AP-Micro sera de retour en stock.
Aucun spam. Un seul courriel quand le produit est disponible.
Parfait! Vous recevrez un courriel dès que le produit sera de retour.
Remises sur volume
1
$706.99/ea
2-4
$704.10/ea
5-9
$701.21/ea
10-19
$695.42/ea
20+
$689.64/ea
Votre prix :
WaveAPMicro
| Fabricant | Ubiquiti |
| Modèle | Wave-AP-Micro |
| UPC | 810010079411 |
| Catégorie | Networking — Accessories |
| Poids | 4.9 lbs |
| Dimensions (boîte) | 13.1" × 7.8" × 6.9" (L×P×H) |
Mechanical

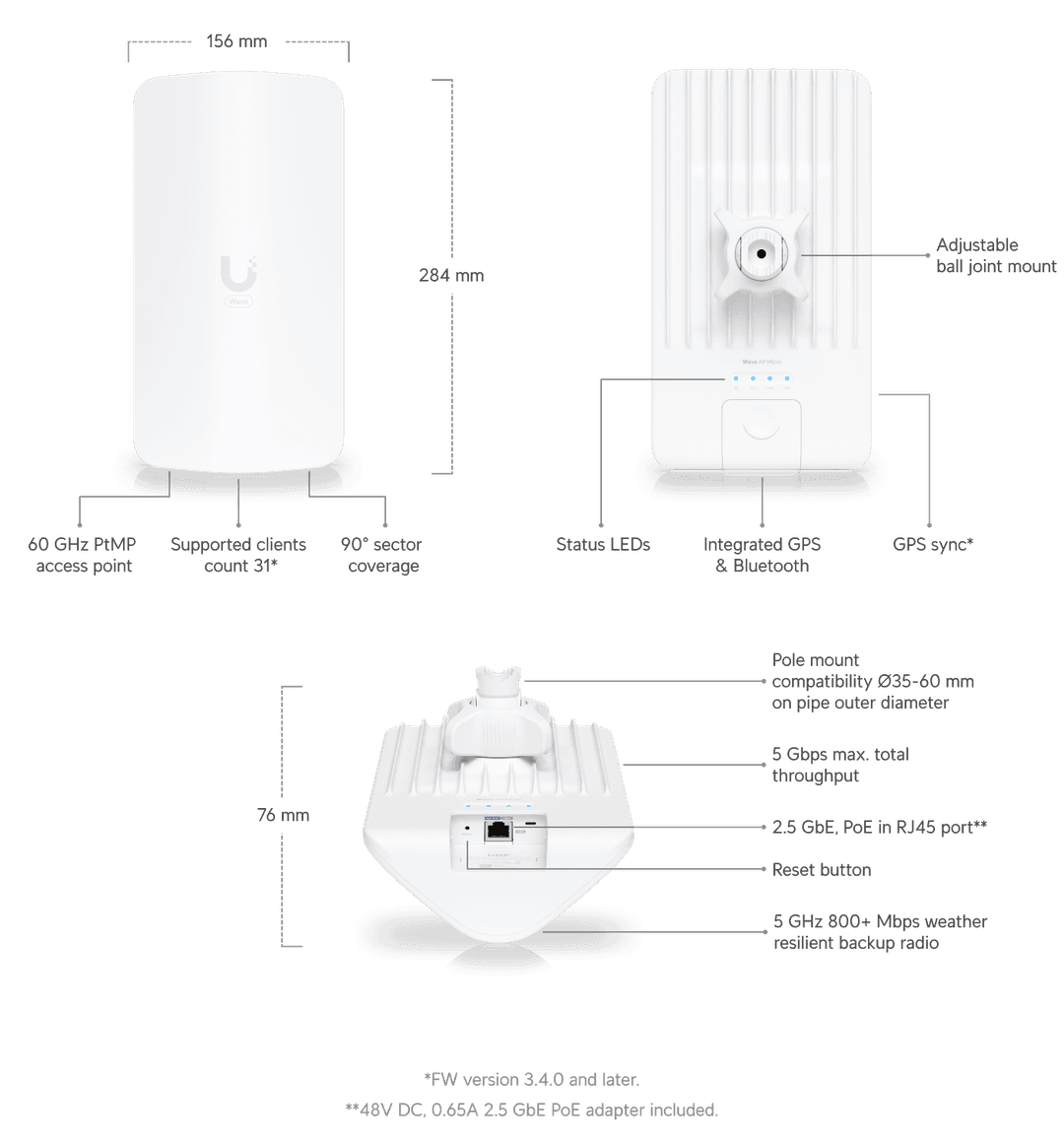

| Dimensions | 284 x 156 x 76 mm (11.2 x 6.1 x 3") |
| Weight | 1.3 kg (2.9 lb) |
| Enclosure Material | Aluminum alloy, UV stabilized polycarbonate |
| Mount Material | Stainless steel, UV stabilized polycarbonate |
| Pole Mount Diameter | 35 to 60 mm (1.4 to 2.4") |
| Wind Loading | 87 N at 200 km/h (20 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | 512 MB |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Max. Power Consumption | 24W |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Supported Voltage Range | 44–54V DC 22–27V DC |
| Power Supply | 48V DC, 0.65A, 2.5 GbE PoE adapter (Included) |
| GPS | Blue: receiving at least(4) GPS satellite signal |
| Buttons | (1) Factory reset |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
| Ethernet | Flashing blue: Ethernet traffic detected |
| Link | Blue: 60 GHz link White: 5 GHz link |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE |
| Operating Modes | PtMP access point |
| Discovery Protocol | ✓ |
| UISP | ✓ |
| Ping Watchdog | ✓ |
| NTP Client | ✓ |
| SNMP | ✓ |
| Cable Test | ✓ |
| Wave AI | ✓ |
| Wave Technology | ✓ |
| Antenna Alignment | ✓ |
| Ping | ✓ |
| Site Survey | ✓ |
| Speed Test | ✓ |
| Traceroute | ✓ |
| Discovery Utility | ✓ |
| Network | Bridge Mode |
| UISP web | Version 2.2.11 and later |
| UISP mobile iOS™ | Version 2.25.1 and later |
| UISP mobile Android™ | Version 2.27.5 and later |
| Total Throughput | 5 Gbps |
| Supported Clients | 31 |
| Max. Range | Connecting to a Wave Pro: up to 6 km (3.7 mi) Connecting to a Wave Long-Range: up to 6 km (3.7 mi) Connecting to a Wave Nano: up to 4 km (2.5 mi) Connecting to a Wave Pico: up to 0.9 km (0.6 mi) |
| Encryption | WPA2-PSK (AES) |
| Operating Frequency | 57–71 GHz |
| Worldwide | 5150 - 5875 MHz |
| Channel Bandwidth | 20, 40, 80 MHz |
| Operating Channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna Gain | 13.5 dBi |
| Polarization | Dual-Linear |
| Beamwidth | Azimuth: 6 dB 90° Elevation: 6 dB 25° |
| Electrical Downtilt | 0° |
| WiFi Standard | 802.11ax (WiFi 6) |
| US/CA | U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz |
| Cross-Pol Isolation | 10 dB |
Specs
| Dimensions | 284 x 156 x 76 mm (11.2 x 6.1 x 3") |
| Weight | 1.3 kg (2.9 lb) |
| Enclosure Material | Aluminum alloy, UV stabilized polycarbonate |
| Mount Material | Stainless steel, UV stabilized polycarbonate |
| Pole Mount Diameter | 35 to 60 mm (1.4 to 2.4") |
| Wind Loading | 87 N at 200 km/h (20 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | 512 MB |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Max. Power Consumption | 24W |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Supported Voltage Range | 44–54V DC 22–27V DC |
| Power Supply | 48V DC, 0.65A, 2.5 GbE PoE adapter (Included) |
| GPS | Blue: receiving at least(4) GPS satellite signal |
| Buttons | (1) Factory reset |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
| Ethernet | Flashing blue: Ethernet traffic detected |
| Link | Blue: 60 GHz link White: 5 GHz link |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE |
| Operating Modes | PtMP access point |
| Discovery Protocol | ✓ |
| UISP | ✓ |
| Ping Watchdog | ✓ |
| NTP Client | ✓ |
| SNMP | ✓ |
| Cable Test | ✓ |
| Wave AI | ✓ |
| Wave Technology | ✓ |
| Antenna Alignment | ✓ |
| Ping | ✓ |
| Site Survey | ✓ |
| Speed Test | ✓ |
| Traceroute | ✓ |
| Discovery Utility | ✓ |
| Network | Bridge Mode |
| UISP web | Version 2.2.11 and later |
| UISP mobile iOS™ | Version 2.25.1 and later |
| UISP mobile Android™ | Version 2.27.5 and later |
| Total Throughput | 5 Gbps |
| Supported Clients | 31 |
| Max. Range | Connecting to a Wave Pro: up to 6 km (3.7 mi) Connecting to a Wave Long-Range: up to 6 km (3.7 mi) Connecting to a Wave Nano: up to 4 km (2.5 mi) Connecting to a Wave Pico: up to 0.9 km (0.6 mi) |
| Encryption | WPA2-PSK (AES) |
| Worldwide | 5150 - 5875 MHz |
| Channel Bandwidth | 20, 40, 80 MHz |
| Operating Channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna Gain | 13.5 dBi |
| Polarization | Dual-Linear |
| Beamwidth | Azimuth: 6 dB 90° Elevation: 6 dB 25° |
| Electrical Downtilt | 0° |
| WiFi Standard | 802.11ax (WiFi 6) |
| US/CA | U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz |
| Cross-Pol Isolation | 10 dB |
